Slitting machine for tin can making

Min. bestelaantal :	1	Prijs :	55000-68000USD
Verpakking Details :	stalen pallet met waterdichte hoes	Levertijd :	90 dagen
Betalingscondities :	T/T, L/C	Levering vermogen :	30

Plaats van herkomst:	Gemaakt in China	Merknaam:	Sunnran

Gedetailleerde informatie
Automatisch:	Ja	Certificering:	CE
vermogen(w):	15 kW	Voorwaarde:	Nieuw
Garantie:	1 jaar	After-sales service verleend:	Ingenieurs beschikbaar aan de dienstmachines overzee, Onlineondersteuning, Videotechnische ondersteu

Productomschrijving

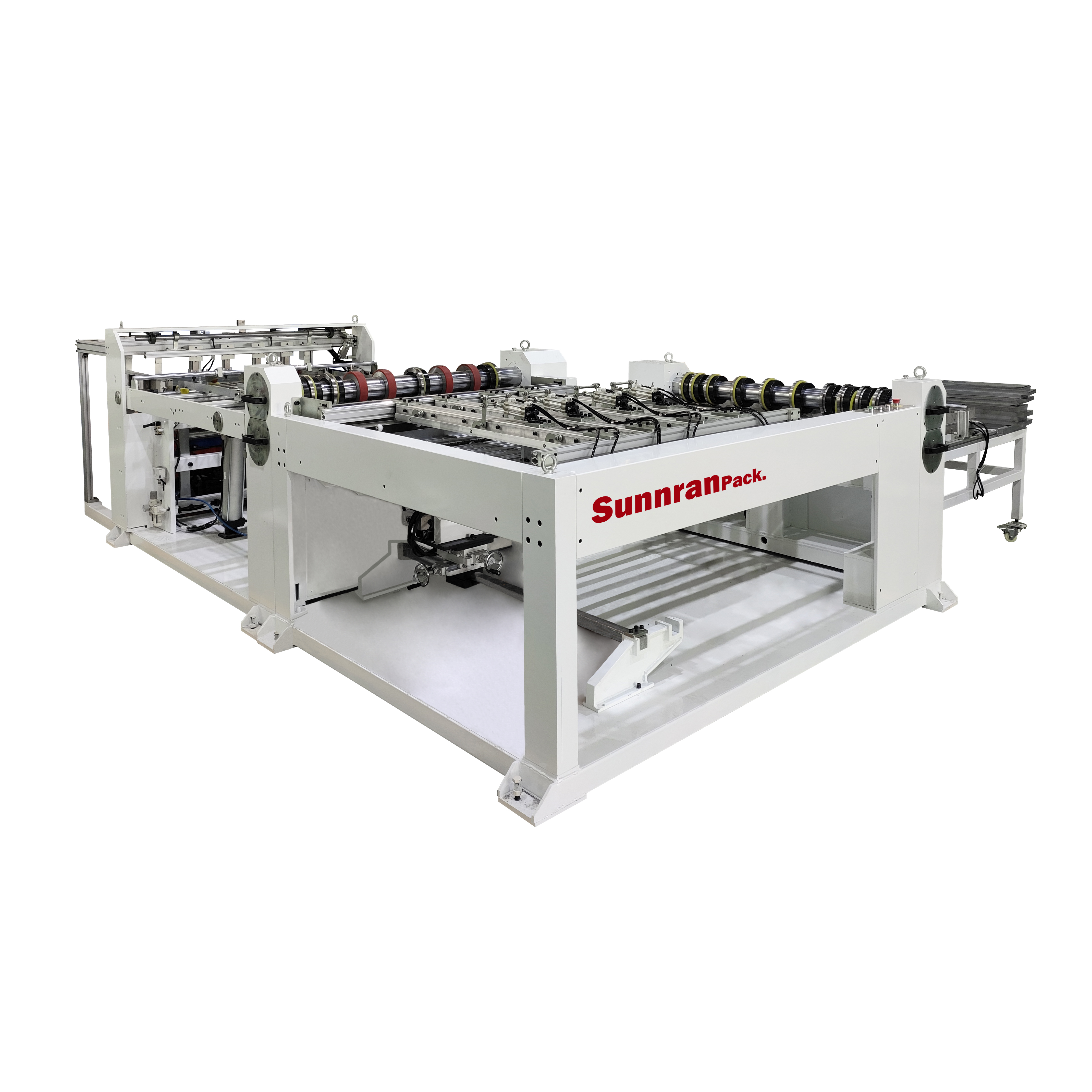

Duplex Slitter

The Duplex Slitter is one of the most important equipment for a 3-piece can making line. The slitter is used to cut the metal sheets into can body blanks in correct size. It’s also suitable for slitting metal sheets into similar size for other industries. It’s equipped with Mitsubishi electrical control components, Yuken hydraulic components. It’s high accuracy, stable, easy operation and easy adjustment.

NO	Item	Data
1	Max feeding dimension	1200x1200mm
2	Min feeding dimension	600x600mm
3	Slitting thickness	0.12-0.5mm
4	Slitting speed	30spm
5	Slitting diagonal tolerance	≤0.05mm
6	Max 1st slitting quantity	6strips
7	Max 2nd slitting quantity	18strips
8	Power	12KW
